Visual Inspection Machines

Glass Wine Bottle Damage Appearance Inspection Machine with Deeping Learning

KeyeTech glass bottle measurement and appearance inspection equipment adopt with AI algorithm system, online high-speed detection of measuring and appearance defect, it can improves detection efficiency and accuracy, and reduces labor costs.High pixel industrial cameras for precise recognition, with on-demand camera quantity design, accuracy of 0.1mm, and customizable speed according to detection needs. Conduct 360° inspection on the bottle mouth, bottom, and body, and detect defects such as black spots, impurities, cracks, and notches, and remove them online.

  • Item No :

    KVS-GB-12
  • Order(MOQ) :

    1 Set
  • Payment :

    T/T, LC
  • Product Origin :

    China
  • Color :

    White/Stainless Steel
  • Shipping Port :

    Shanghai
  • Lead Time :

    15~30 Days
  • Weight :

    About 300Kg

The glass wine bottle inspection equipment utilizes high-definition imaging technology, it is equipped with KeyeTech AI system used to analyze object images and obtain various parameters for real-time comparison and detection with standard products. Under the AI deep learning algorithm, the system removes unqualified products through high-speed air valves and automatically counts and divides qualified products into boxes, greatly improving production efficiency and ensuring product qualification rate, the machine is widely used for alcohol package bottle industry now.



Main Features

  • Latest AI algorithms by USTC R&D team

  • Modularization high capacity computing box

  • Cloud platform for remote operation&maintenance

  • Self-developed hardware and software system

  • High compatibility with various product kinds



Main Specifications

Defect Types

Bottle measurement defects and visual defects inspection.

Inspection Positions Full bottle body, bottle mouth, bottle bottom, bottle body
Inspect Speed 30Pcs/min (take an example of wine bottle)
Precision 0.2mm
Accuracy Rate >99.8%
Compressed Air 0.5Mpa~0.8Mpa
Power 5~7Kw
Camera Quantity Based on defect types



Main Configurations

Description Model/Brand Quantity
AI Algorithm Software Series KVIS V16.0  1 Set
AI Cloud Service Platform KeyeTech 1 Set
Industrial Camera KeyeTech / HIKVISION Customizable
Plane Lens HIKVISION Customizable
Strobe Light Source KeyeTech 1 Set
Photoelectric Sensor SICK (Germany) 1 Set (customizable)
Electromagnetic Valve SMC (Japan) 1 Pc (customizable)
Industrial Power Kit LRS Seris 1 Set
Main Control Panel KY-INS-V21 1 Set
PLC RTS-3060 1 Set
Embedded Computing Unit KYEBS-1684 1 Set (Optional)
HID UI System 21 Inch 1 Set
Mechanical Structure 304 Stainless Steel 1 Set



Product Applications

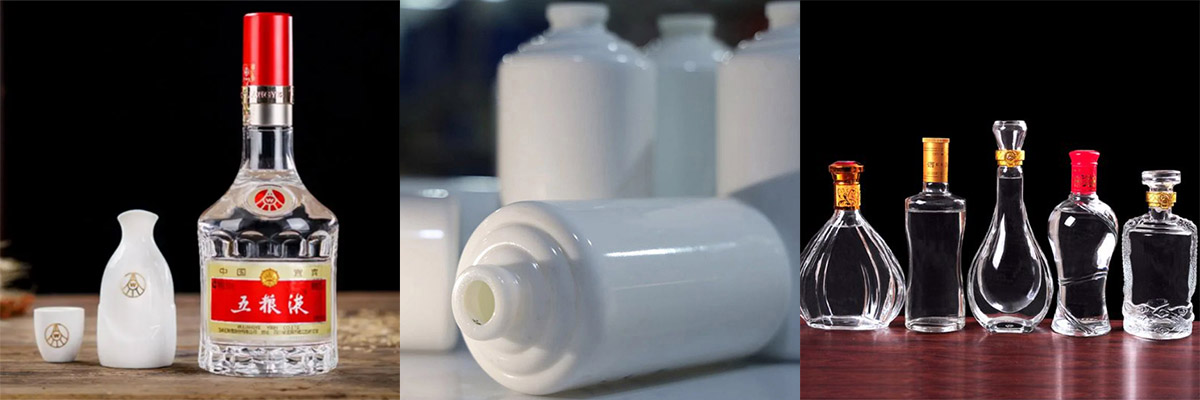

For wine glass bottle measurement error and appearance defect inspection.

glass bottle visual defect inspection



The defects inspection samples:

glass bottle vision defect detection



Main Technical Advantages

  • hid industrial camera
    HID Industrial Camera
    Self-developed high precision industrial camera together with field famous HID lens, equipped with KeyeTech AI algorithm system, it can be achieved to high speed and high precision visual imaging effect.

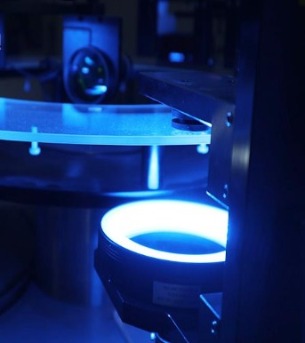

  • LED light source for visual inspection
    Customized Light Sources
    Self-developed strobe LED light source, design the special use light source based on different character appearance defects. The integrated cavity light source can get more uniform imaging of the sidewalls.
  • automatic air blowing device for vision inspection
    Automatic Control System
    High efficiency GPU processing unit and customizable HID human-computer interaction software work together with high performance electromagnetic valve can achieve to full automated control.
  • AI VISUAL INSPECTION SYSTEM
    KeyeTech AI System
    KeyeTech software system adopt AI deep learning algorithm is the core technical advantages of the machine, reaching to more precise, faster speed imaging and defect recognition, greatly improve the efficiency.

FAQ

Q: What's kind of preforms can be inspected?

A: It can inspect the appearance defect and measurement defect of glass bottles.

Q: What kind of defects it can inspect?

A: All the defects that can be seen by eyes is able to be inspected, it is appearance visual inspection.

Q: How many defects can be detected by one machine?

A: The quantity of defects is unlimited, it's depended on customer's detection request.

Q: How many cameras are equipped in the machine?

A: The exact camera quantity is up to detected defect kinds and positions, the more kinds the more quantity.

Q: What's the definition of the camera?

A: The definition of the camera and lens are depended on your defected precision, i.e, the definition is different if the defected precision is 0.2mm and 0.5mm.

Q: If the camera is self-developed or buy from the professional camera producers?

A: Most of the cameras are designed and developed by ourselves, especially the inspection system is AI algorithm, the camera must match the AI system.

Q: Is the cameras are the most important for the inspection?

A: Camera is one of the most important hardware of the equipment, the AI algorithm software system is the key technology for the machine.

Q: How to solve installation and adjustment?

A: We will send our skilled engineers to you for installation and adjustment, it takes around one week.

Q: Is difficult to use your machine, how to train our people?

A: Yes, the machine system is sophisticated, but the control for you is easy. We can train your people online via KeyeTech AI platform which is very convenient, and you can also send your technician to our company to learn, it's free.

Q: What's your machine's guarantee? Can you supply the spare parts in the future?

A: We supply the one year warranty for our entire machine, 3 years warranty for hardware like the camera, lens, sensor, (If damaged by personal improper use customer need to purchase from us). We are responsible for the spare parts and maintenance for long time.

Q: What's detailed information i need to supply to get a quote?

A: Customers need to supply some exact answers to us for a quote:

  • How many different glass bottles in total to be inspected?
  • What's color and size of the bottle? (need samples or drawing)
  • How many different defects need to be detected?(need samples or drawing)
  • Inspect for target position or 360° full positions?
  • What's the request of the inspection speed?
  • Any special requirement for inspection precision?
  • Online or offline inspection? If online how to match your bottle machine?

The above are part of the questions we need to discuss before the quote, for a exact quote we also need physical defect samples.



Remarks: In order to design equipment that meets customer needs more accurately, we need to have detailed communication between both parties on the details of testing, and only then can we confirm the equipment parameters. This requires some time and process, and we hope that customers with purchasing needs can come to our company for face-to-face communication and inspection.
