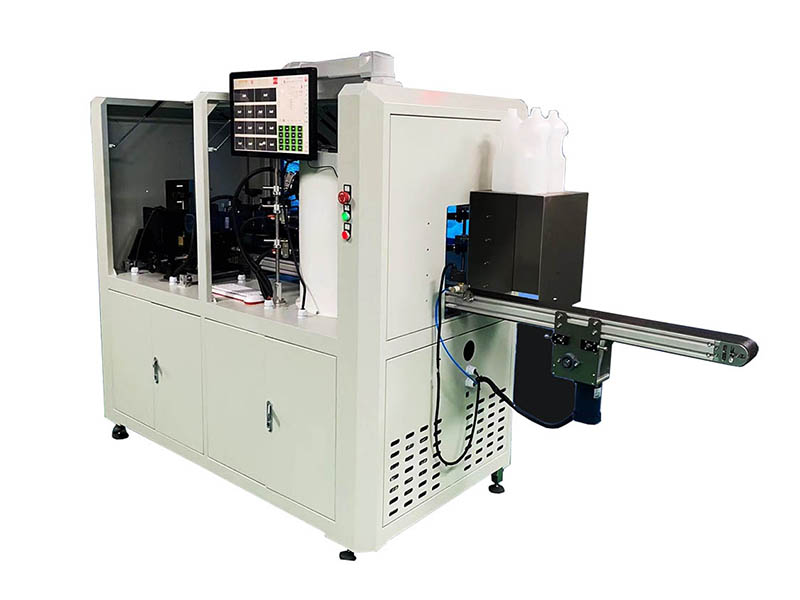

KeyeTech AI technology plastic bottle visual defect inspection machine is online high-speed detection for bottle mouth, bottle shoulder, bottle inner bottom, bottle outer bottom, and bottle sidewall. AI system control software improve the detection efficiency and accuracy, and reduce labor costs. The machine adopt high pixel industrial cameras for precise recognition, with on-demand camera quantity design, accuracy of 0.15mm. The inspection speed reach to 300 per minute (inspection speed is customizable according to customer's detection needs).
Compatible with testing multiple specifications of products, saving costs. This AI visual inspection system detect and remove bottle defects such as black spots, color differences, impurities, threads, lifting rings, notches, residues, burrs, bubbles, voids, deformations, uneven thickness, and dimensions on the bottle body online.
Main Features
- High pixel industrial camera
- High resolution industrial lenses
- High brightness strobe light source
- Artificial intelligence (Al) algorithm
- High performance GPU computing processing platform
- High resolution industrial touch screen
Main Specifications
| Defect Types |
Bottle color difference, black spot,stain, thread, burr, flashing, notch, deformation... |
| Inspection Positions | Bottle mouth, mouth, screw, sidewall. |
| Inspect Speed | 150pcs~300pcs/min |
| Precision | 0.15mm |
| Accuracy Rate | >99.9% |
| Compressed Air | 0.5Mpa~0.8Mpa |
| Net Weight | About 350Kg |
| Dimension | 3550*1030*1800mm |
| Power | 5~7Kw |
Main Configurations
| Description | Model/Brand | Quantity |
| AI Algorithm Software Series | KVIS V16.0 | 1 Set |
| AI Cloud Service Platform | KeyeTech | 1 Set |
| Industrial Camera | KeyeTech / HIKVISION | 6 Pcs (customizable) |
| Plane Lens | HIKVISION | 6 Pcs (customizable) |
| Strobe Light Source | KeyeTech | 1 Set |
| Photoelectric Sensor | SICK (Germany) | 3 Pcs (customizable) |
| Electromagnetic Valve | SMC (Japan) | 1 Pc (customizable) |
| Industrial Power Kit | LRS Seris | 1 Set |
| Main Control Panel | KY-INS-V21 | 1 Set |
| PLC | RTS-3060 | 1 Set |
| Embedded Computing Unit | KYEBS-1684 | 1 Set (Optional) |
| HID UI System | 21 Inch | 1 Set |
| Mechanical Structure | 304 Stainless Steel | 1 Set |

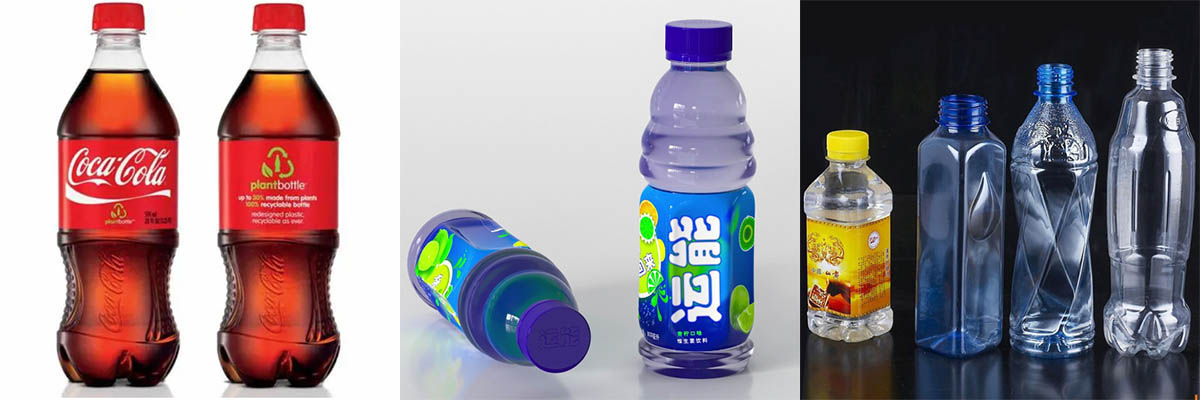

Product Applications
For plastic preforms quality and visual defect inspection.
The defects inspection samples:
Main Technical Advantages
-
HID Industrial CameraSelf-developed high precision industrial camera together with field famous HID lens, equipped with KeyeTech AI algorithm system, it can be achieved to high speed and high precision visual imaging effect. -
Customized Light SourcesSelf-developed strobe LED light source, design the special use light source based on different character appearance defects. The integrated cavity light source can get more uniform imaging of the sidewalls. -
Automatic Control SystemHigh efficiency GPU processing unit and customizable HID human-computer interaction software work together with high performance electromagnetic valve can achieve to full automated control. -
KeyeTech AI SystemKeyeTech software system adopt AI deep learning algorithm is the core technical advantages of the machine, reaching to more precise, faster speed imaging and defect recognition, greatly improve the efficiency.
FAQ
Q: What's kind of bottle can be inspected?
A: It can inspect plastic bottles for food and beverages..
Q: What kind of defects it can inspect?
A: All the defects that can be seen by eyes is able to be inspected, such as black spot, gap, crack, stain, deformation, etc.
Q: How many defects can be detected by one machine?
A: The quantity of defects is unlimited, it's depended on customer's detection request.
Q: How many cameras are equipped in the machine?
A: Our standard is 6pcs cameras, the exact camera quantity is up to detected defect kinds and positions, the more kinds the more quantity.
Q: What's the definition of the camera?
A: The definition of the camera and lens are depended on your defected precision, i.e, the definition is different if the defected precision is 0.2mm and 0.5mm.
Q: If the camera is self-developed or buy from the professional camera producers?
A: Most of the cameras are designed and developed by ourselves, especially the inspection system is AI algorithm, the camera must match the AI system.
Q: Is the cameras are the most important for the inspection?
A: Camera is one of the most important hardwares of the equipment, the AI algorithm software system is the key technology for the machine.
Q: How to solve installation and adjustment?
A: We will send our skilled engineers to you for installation and adjustment, it takes around one week.
Q: Is difficult to use your machine, how to train our people?
A: Yes, the machine system is sophisticated, but the control for you is easy. We can train your people online via KeyeTech AI platform which is very convenient, and you can also send your technician to our company to learn, it's free.
Q: What's your machine's guarantee? Can you supply the spare parts in the future?
A: We supply the one year warranty for our entire machine, 3 years warranty for hardware like the camera, lens, sensor, (If damaged by personal improper use customer need to purchase from us). We are responsible for the spare parts and maintenance for long time.
Q: What's detailed information i need to supply to get a quote?
A: Customers need to supply some exact answers to us for a quote:
- How many different bottles in total to be inspected?
- What's color and size of the bottle? (need samples or drawing)
- How many different defects need to be detected?(need samples or drawing)
- Inspect for target position or 360° full positions?
- What's the request of the inspection speed?
- Any special requirement for inspection precision?
The above are part of the questions we need to discuss before the quote, for a exact quote we also need physical defect samples.
Remarks: In order to design equipment that meets customer needs more accurately, we need to have detailed communication between both parties on the details of testing, and only then can we confirm the equipment parameters. This requires some time and process, and we hope that customers with purchasing needs can come to our company for face-to-face communication and inspection.
